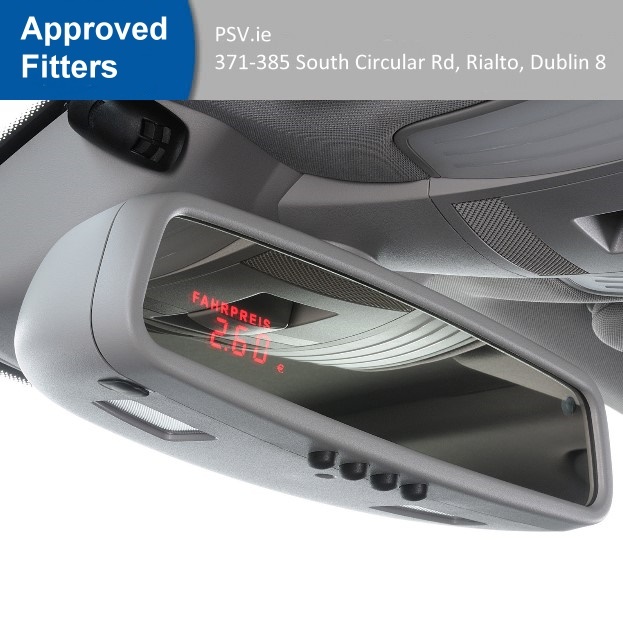

The mirror taxi meter Hale SPT-02 is fully integrated into the interior rear-view mirror. With Mercedes Benz it is integrated in the original housing in corresponding colors. The standard black housing of the SPT-02 fits different sockets for VW, Opel, Audi, BMW and Škoda. 45 more adapters for other vehicles. They all have TÜV approval.

The perfect integration

• The only mirror taxi meter which adapts to the board electronics
• CiA CAN 447 1.0 and 2.0 implemented No subsequent alterations in the car necessary
• No visible wiring
• High resale value
• Automatic interior light switching

The elegant innovation

• Esthetical, appealing solution
• Invisible in OFF-mode
• Roof sign status indicator
• Fare easily read from every seat
• High operation comfort (push buttons with a distinctive pressure point)

Brilliant mirror taxi meter technology

• Automatic luminosity adjustment of the meter display
• Automatic and variable dimming of the mirror glass
• Prevents dazzling from car behind
• Integrated temperature sensors
• No more being blinded

Modern and future oriented

• Automotive processor contains a flashable program memory, in-car-upgrade
• Software expansions directly programmable

Complies with the high requirements for the Automobile industry

• Unrivaled low power consumption: 0,3 mA
• Extended temperature range

3 Operation modes

• Normal operation
• Operation with driver log-on
• Cey-System-operation

Modular Extensions

• HALE Cey accounting system
• CAN-bus for printer TPD-01 (taxi receipts, shift accountings, trip memory printouts and utilisation figures)
• Trip record for data radio, (Serial or Bluetooth)

Convincing technology

• Pr-programmable second tariff memory with automatic tariff change and pre-selected date and time
• Intelligent holiday calendar until 2030: saves workshop, verification and calibration expenses
• Most modern tariff design with optimal flexibility through 32 tariff steps

Free configurable totalizers and trip memory

• 14 trip and shift totalizers and 14 password protected owner totalizers
• All totalizers are free configurable
• Integrated trip memory with activatable and adjustable memory depth records data of approx. 800 trips
• Additional features include package price function, speed alarm and input of credit customer numbers

Technical data

• Operating voltage 9-18V
• Current consumption max. 1,8 A
• Current consumption in OFF-mode typ. 0,3 mA
• Transducer input 500-65535 Imp/km or via CiA CAN
• Operating temperature -25° C to +85° C; -13°F to + 185°F
• Special features : Ambient light and dazzling sensor for automatic dimming of the mirror glass • Intelligent holiday calendar until 2030 • Roof sign control display
• Connections • Ignition (for automatic OFF-mode) • Roof sign output 40 W, Taximeter status for data radio • Seat sensor input • Stopped status for interior light
• Interfaces • HALE Cey accounting software • CAN Bus for receipt of printer TPD-01 • CiA CAN 447 • EN 50148 test interface • Trip record for data radio
